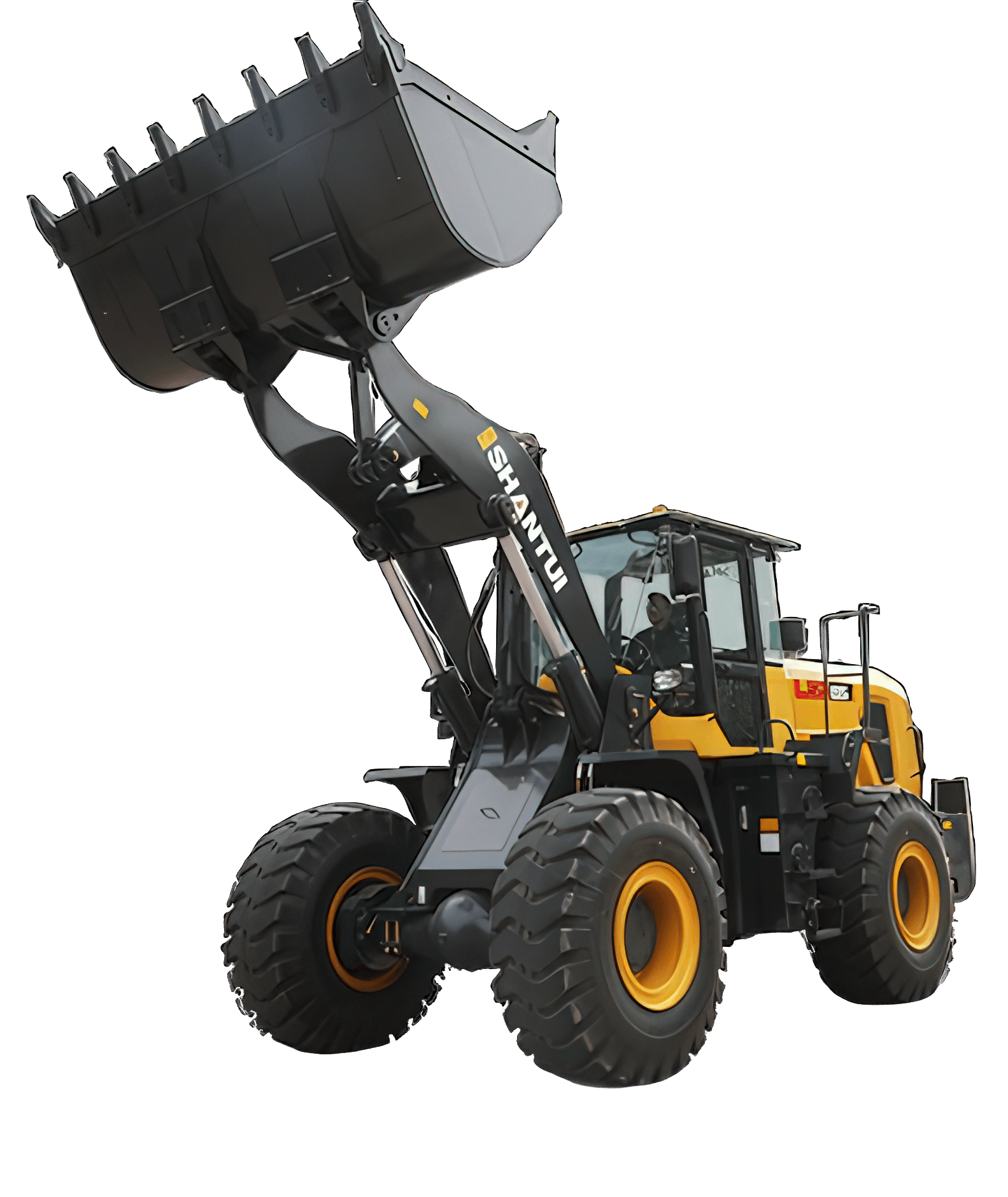

Shantui L55-B5 Spec Highlights
Engine
Rated Power
High-Efficiency Powertrain
Powered by a Weichai WD10G220E23 inline-6 turbocharged diesel engine, the L55-B5 delivers 162 kW (220 hp) @ 2000 rpm without requiring urea/DEF. Paired with Shantui's planetary torque-converter transmission, it ensures smooth acceleration and optimal fuel economy.
Balanced Weight & Structural Strength
With an operating weight of 16,400 kg (3 m³ bucket version) to 19,000 kg (4.5 m³ bucket), the machine offers stability and traction. Reinforced front and rear frames and rugged axles ensure durability in heavy applications.
Versatile Bucket & Strong Lifting Performance
Available in 3.6 m³ or 4.5 m³ buckets, the loader achieves a breakout force of 170 kN and a tipping load around 11,000 kg. A cycle time of 10.5 s and a quick lift time of 5.5 s help maintain loading efficiency.
Comfortable Cabin & Service-Friendly Design
The cab offers 15% more space, better sealing, noise reduction, ergonomic joystick controls, and optional heating/A-C. Wide side panels, grouped filters, and external brake calipers simplify maintenance.
Shantui L55-B5 Specifications
Engine Model
Model
Type
Displacement
Emission
Operating Weight
3.0 m³ Bucket
4.5 m³ Bucket
Rated Power
Rated Power
Max Torque
Bucket Capacity
Standard Bucket
Optional Heavy-Duty
Breakout Force
Tipping Load
Cycle Time
Lift Time
