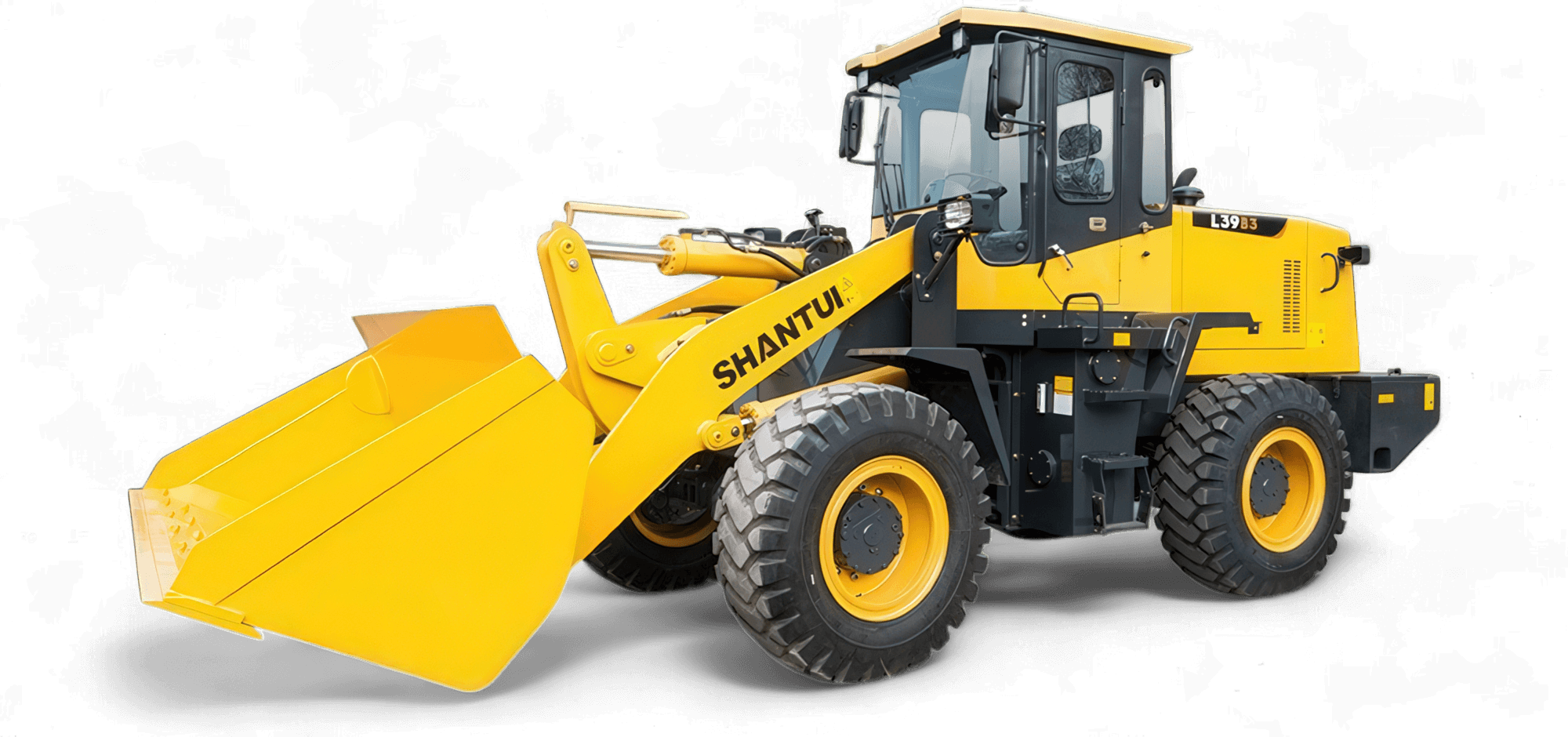

Shantui L39-B3 Wheel Loader – 92kW Turbocharged, 3.6t Rated Load, Compact Design

Shantui L39-B3 Spec Highlights

Engine

Model Weichai WP6G125E22, 6.75 L, 6-cylinder turbocharged diesel

Emissions China Stage II (similar to Euro II)

Rated Power

Power Output 92 kW (125 HP) @ 2200 rpm

Engine Torque 500 Nm (approx.) @ 1400 rpm

Complete Specs

Efficient Turbocharged Powertrain

The Shantui L39-B3 is equipped with a Weichai WP6G125E22 engine delivering 92 kW (125 HP) at 2200 rpm. This fuel-efficient, turbocharged 6-cylinder diesel engine offers strong torque output and reliable performance, making it ideal for medium-duty loading operations in construction, agriculture, and quarry sites.

Optimized Weight and Maneuverability

With an operating weight of 10,800 kg and a compact 2,900 mm wheelbase, the L39-B3 strikes a balance between stability and agility. Its 340 mm ground clearance and ~5.8 m turning radius allow it to perform efficiently in tight or uneven work environments.

High-Performance Loading Capabilities

The loader features a 1.8 m³ standard bucket (optional 3.0 m³), breakout force of 105 kN, and a dump height of 3,057 mm—making it capable of handling gravel, sand, grain, and other bulk materials with speed and precision.

Operator Comfort and Easy Servicing

The spacious cab features a suspension seat, ergonomic pilot controls, and wide visibility for reduced fatigue. Maintenance is simplified with side-opening engine covers, grouped service points, and optional centralized lubrication.

Shantui L39-B3 Specifications

Engine Model

Model

Weichai WP6G125E22

Type

6-cylinder, 4-stroke, water-cooled, turbocharged diesel

Displacement

6.75 L

Emission

China Stage II (similar to Euro II)

Operating Weight

Standard Configuration

10,800 kg

Ground Clearance

340 mm

Wheelbase

2,900 mm

Turning Radius

~5,800 mm (outer edge)

Rated Power

92 kW (125 HP) @ 2200 rpm

Engine Torque

500 Nm (approx.) @ 1400 rpm

Fuel Tank Capacity

170 L

Travel Speed

Forward

Up to 38 km/h

Reverse

Up to 16.4 km/h

Bucket Capacity

Standard Bucket

1.8 m³ (general purpose)

Optional Bucket

3.0 m³ (grain/light material)

Dump Height

3,057 mm (at 45° dump angle)

Dump Reach

~1,000 mm

Breakout Force

105 kN

Rated Load

3,600 kg

Max Tipping Load

6,000 kg (at full turn)
