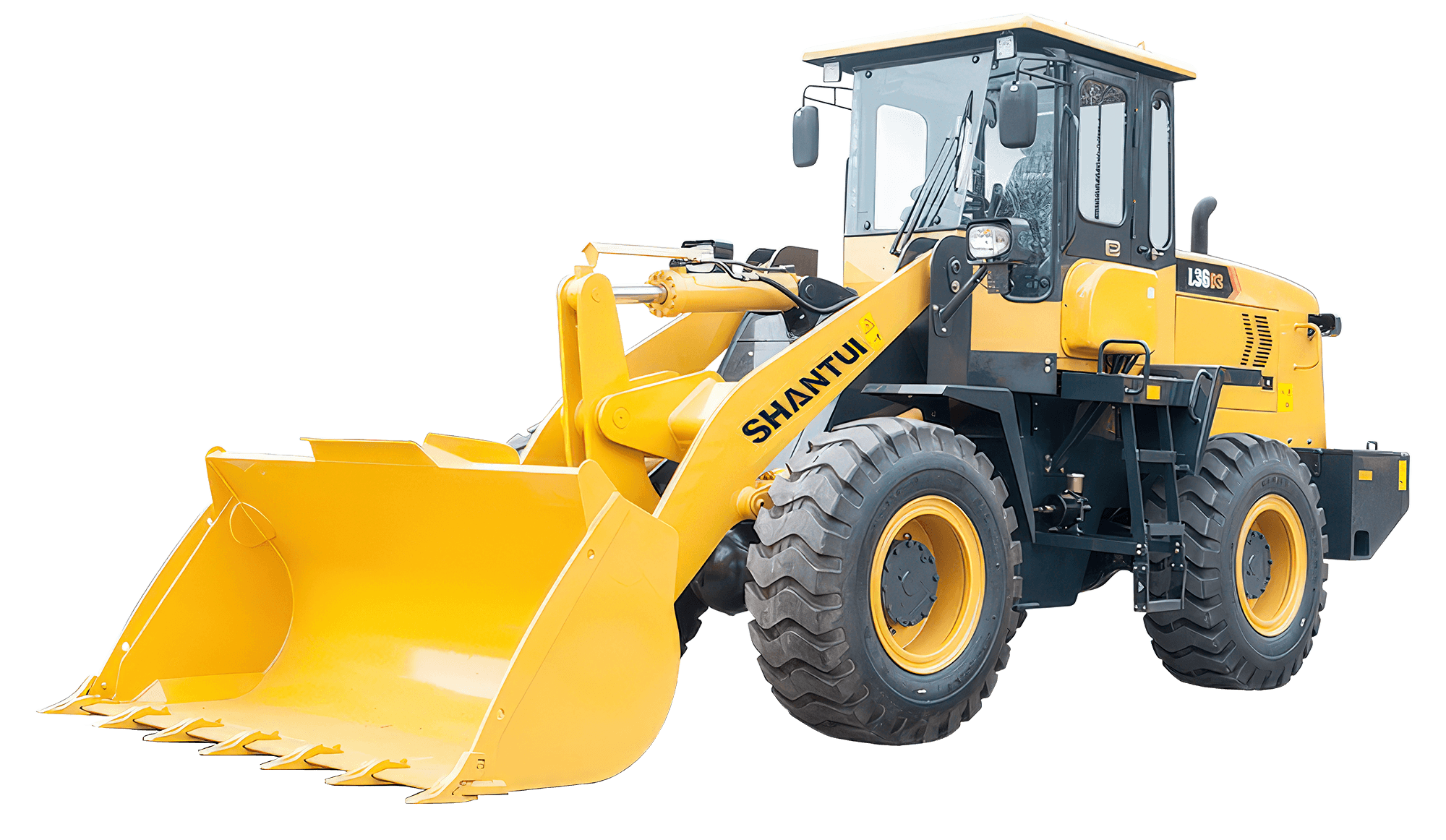

Shantui L36-B3 Wheel Loader – 92kW Turbocharged, 3.6t Rated Load, Compact Design

Shantui L36-B3 Spec Highlights

Engine

Model Weichai WP6G125E22, 6.75 L, 6-cylinder turbocharged diesel

Emissions China Stage II (equiv. to Euro II)

Rated Power

Power Output 92 kW (125 HP) @ 2200 rpm

Max Torque 500 Nm @ ~1400 rpm

Complete Specs

Efficient Turbocharged Powertrain

The Shantui L36-B3 is equipped with a Weichai WP6G125E22 turbocharged diesel engine that delivers 92 kW (125 HP) at 2200 rpm. It provides up to 500 Nm of torque, offering strong low-end pulling power and fuel efficiency for general construction, agriculture, and light quarry applications.

Compact Yet Stable Design

With a 10,300 kg operating weight, a 2,850 mm wheelbase, and 345 mm ground clearance, the L36-B3 is engineered for both maneuverability and ground stability. Its tight turning radius (~5,700 mm outer) makes it ideal for small job sites or yard work.

Solid Loading Performance

The 1.7 m³ standard bucket is matched to a breakout force of 95 kN and tipping load of 60 kN. With a lift time of 5.0 seconds and full cycle time under 9 seconds, it provides efficient material handling in load-and-carry operations.

Operator Comfort and Easy Maintenance

The ROPS/FOPS-certified cab offers wide visibility, ergonomic joystick controls, and a suspension seat. Maintenance is quick with side-opening engine hoods, centralized filters, and easy access to service points—minimizing downtime on site.

Shantui L36-B3 Specifications

Engine Model

Model

Weichai WP6G125E22

Type

6-cylinder, 6.75 L, turbocharged, water-cooled

Injection

Direct injection diesel

Emission

China Stage II (equiv. to Euro II)

Operating Weight

Standard Configuration

10,300 kg

Ground Clearance

345 mm

Wheelbase

2,850 mm

Turning Radius

~5,700 mm (outer edge)

Rated Power

92 kW (125 HP) @ 2200 rpm

Max Torque

500 Nm @ ~1400 rpm

Fuel Tank Capacity

170 L

Travel Speed

Forward

38 km/h

Reverse

16.4 km/h

Bucket Capacity

Standard Bucket

1.7 m³ (general-purpose)

Optional Bucket

Grain bucket or light material bucket

Breakout Force

95 kN

Rated Load

3,600 kg

Tipping Load

60 kN

Dump Height

~3,057 mm

Dump Reach

~1,000 mm

Lift Time

5.0 s

Full Cycle Time

~9.0 s
